High Temperature Control Accuracy& Pollution-Free
PID intelligent temperature control system with a temperature control accuracy of ±1°C
Large touch screen

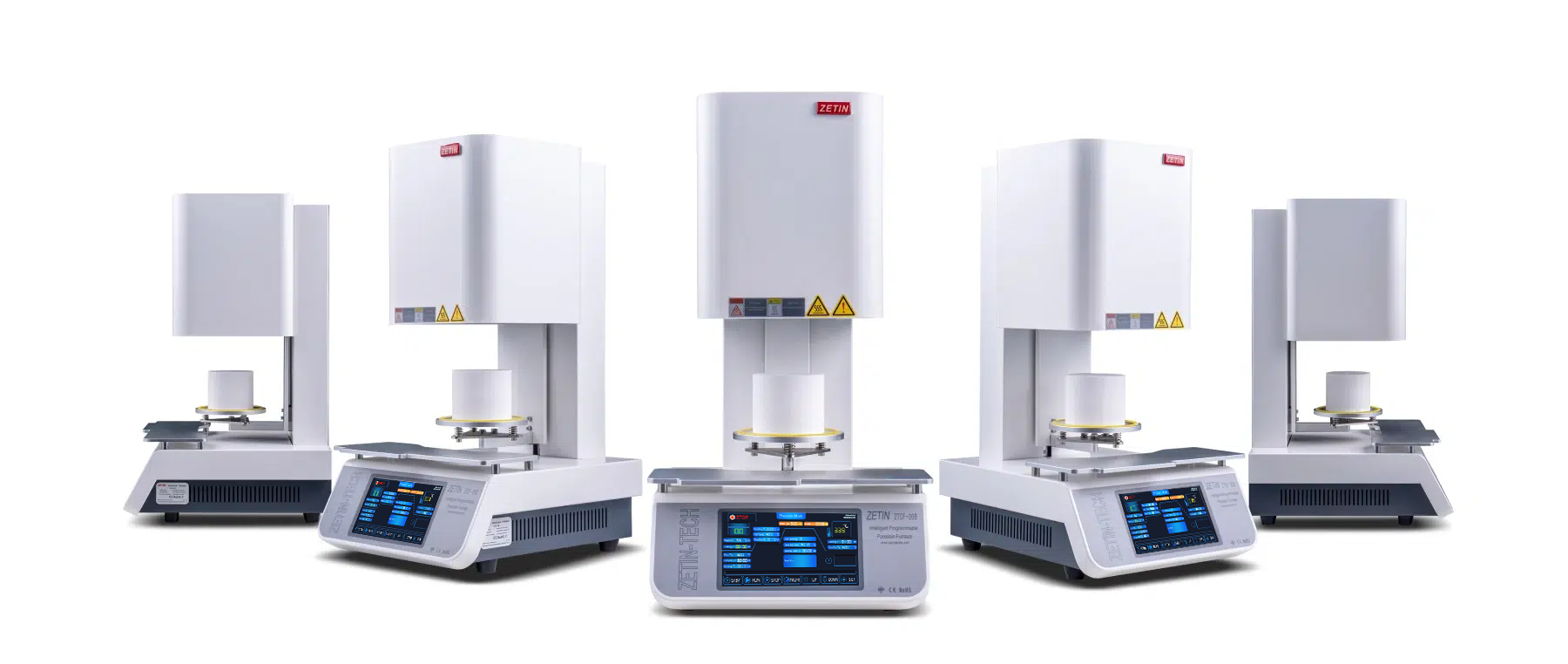

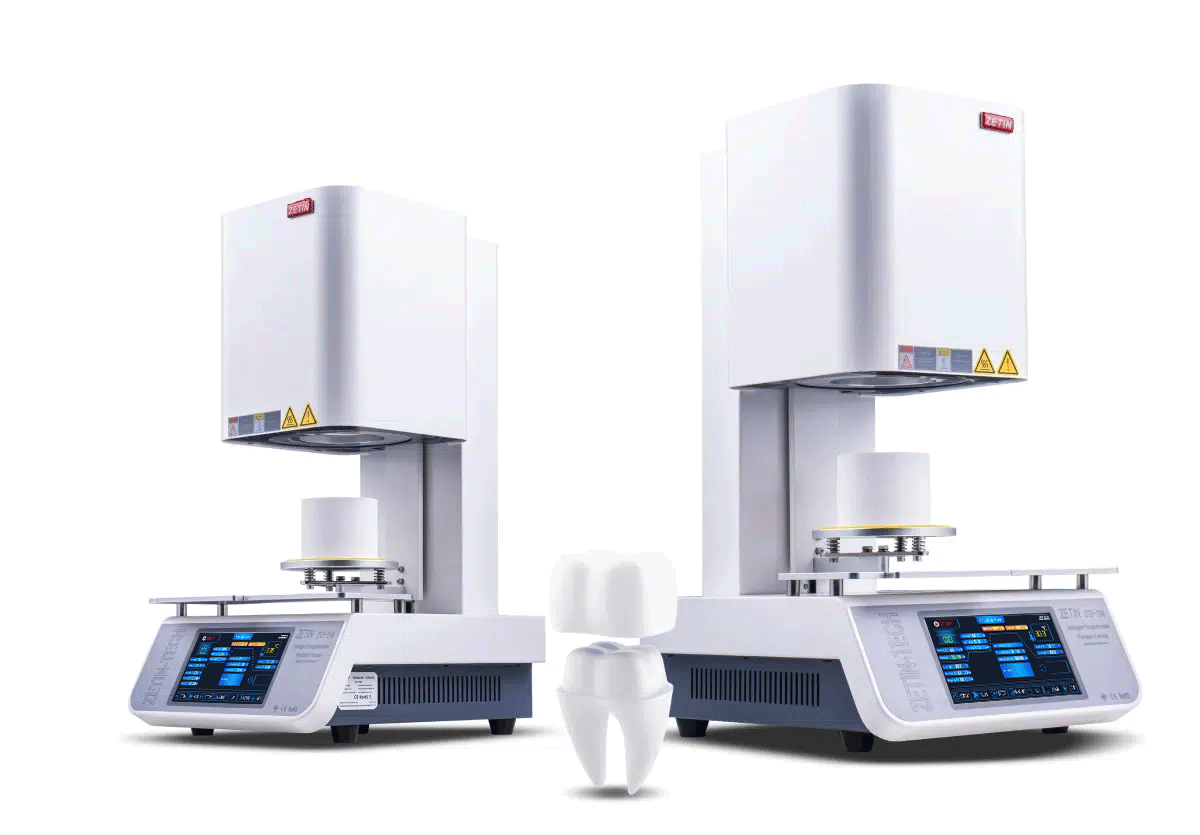

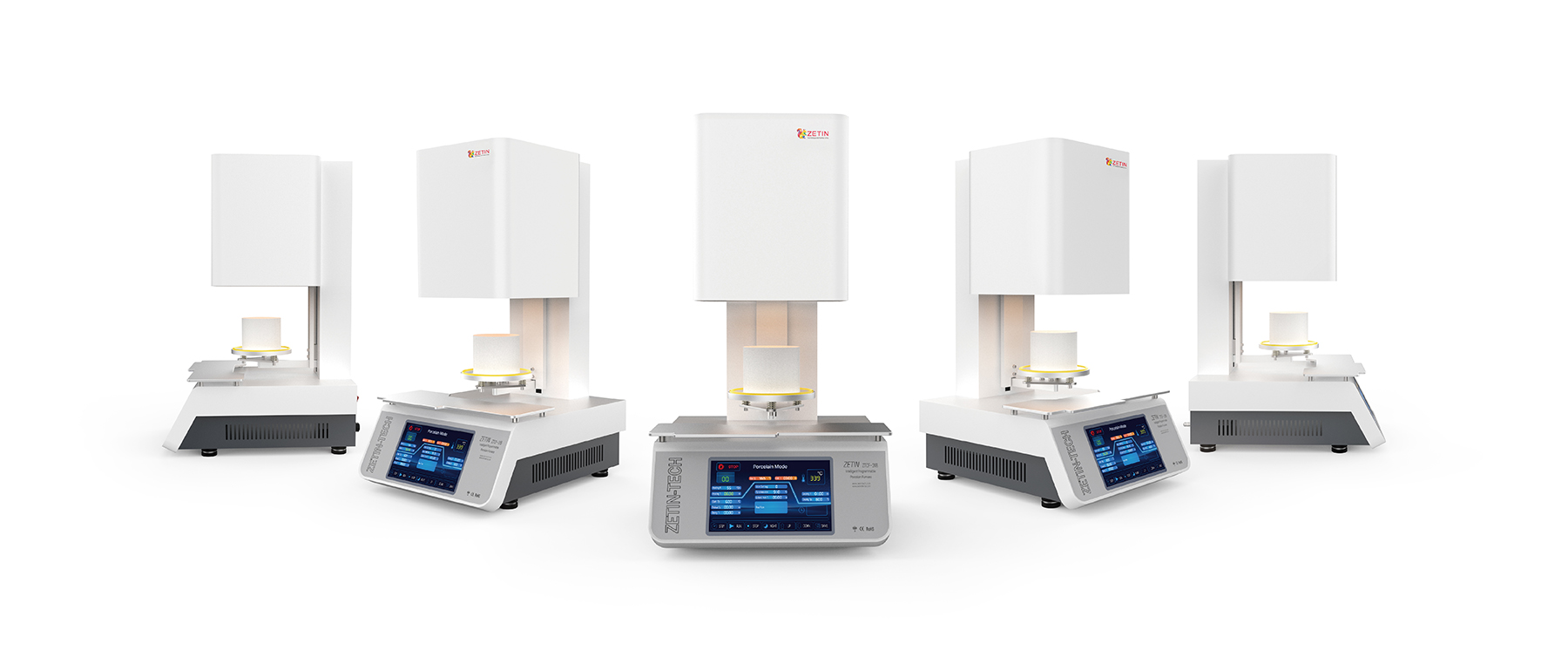

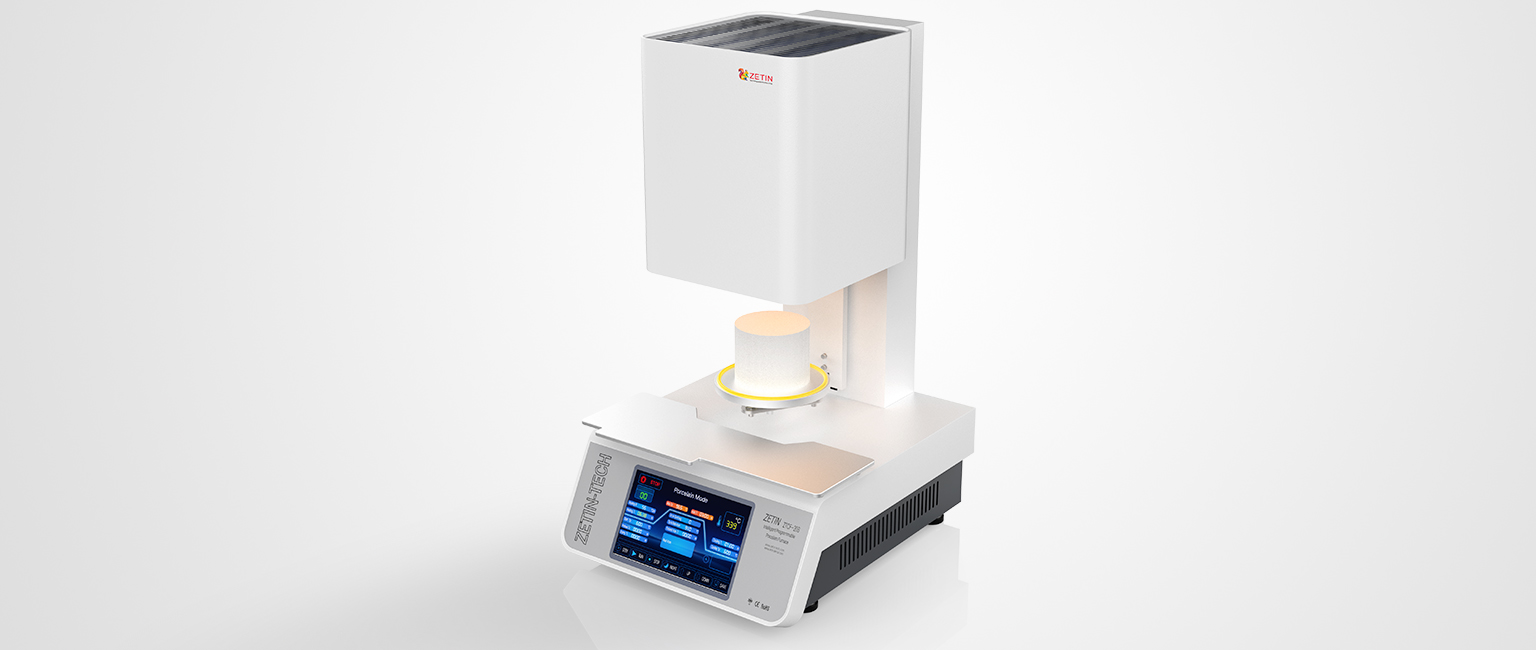

Porcelain Furnace
ZTCF-20B
- Solve the issue of insufficient sintering precision
- Resolve the poor process adaptability issue
- Eliminate the problems of complex and time-consuming operation
Solutions to three core problems: 1. Insufficient sintering accuracy. Traditional equipment has large temperature fluctuations (more than ±15°C), resulting in bubbles in the porcelain layer and poor edge tightness, this product ensures zero defects in the restoration through high-precision PID control (±1°C). 2. Poor process adaptability. This product is compatible with all porcelain materials such as zirconia and glass ceramics, and presets 3 kinds of porcelain powder sintering programs to avoid manual debugging errors. 3. The operation is complex and time-consuming. This product adopts a one-button start intelligent program, which increases the sintering efficiency by 40% and lowers the learning threshold for technicians.
Ensure sintering quality
Multi-stage warming
Compatible with different all-ceramic materials such as zirconia and glass ceramics to meet different needs

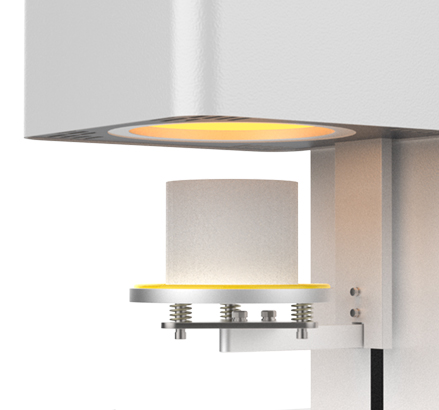

Imported heating wire
Uniform heating, ensuring sintering quality, long service life, and reducing maintenance costs
Imported sensors
Accurate measurement of vacuum level, effective removal of gases, reduction of oxidation reaction, ensuring uniform melting of porcelain powder, and improving the tightness of restorations
± 1 ℃ temperature error
PID intelligent temperature control system improves sintering quality and reduces consumables consumption
New insulation materials
Good thermal insulation effect, energy saving and high efficiency
Convenient operating system

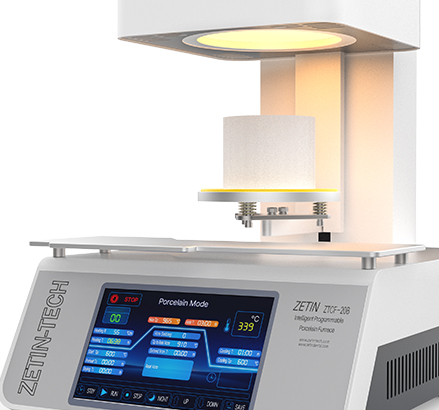

7-inch high-definition color touch screen
Data visualization interface design, scientifically reasonable button layout, simple and easy operation, reducing job training and improving work efficiency
3 major program selection
Built-in Yihujia, Vita, Zewu porcelain powder program, users can choose independently according to material needs, with wide adaptability to ensure the smooth progress of work

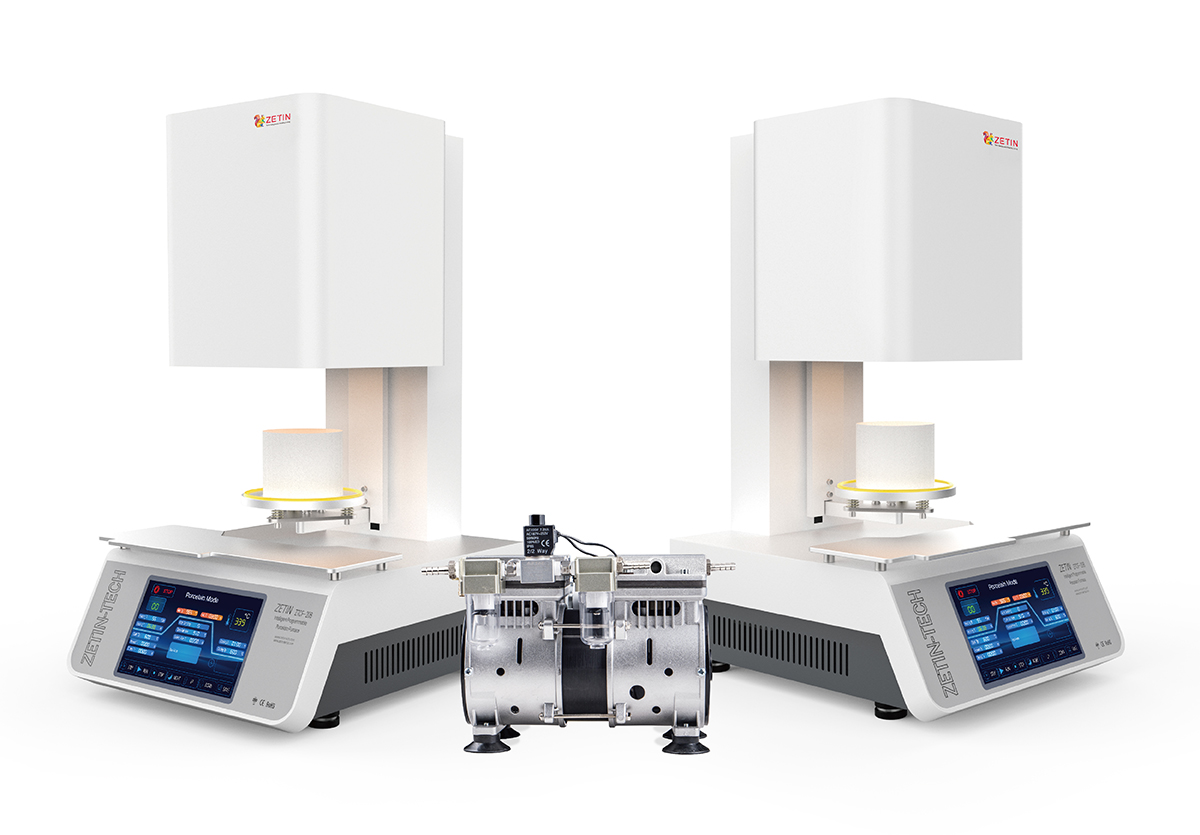

Professional supporting design

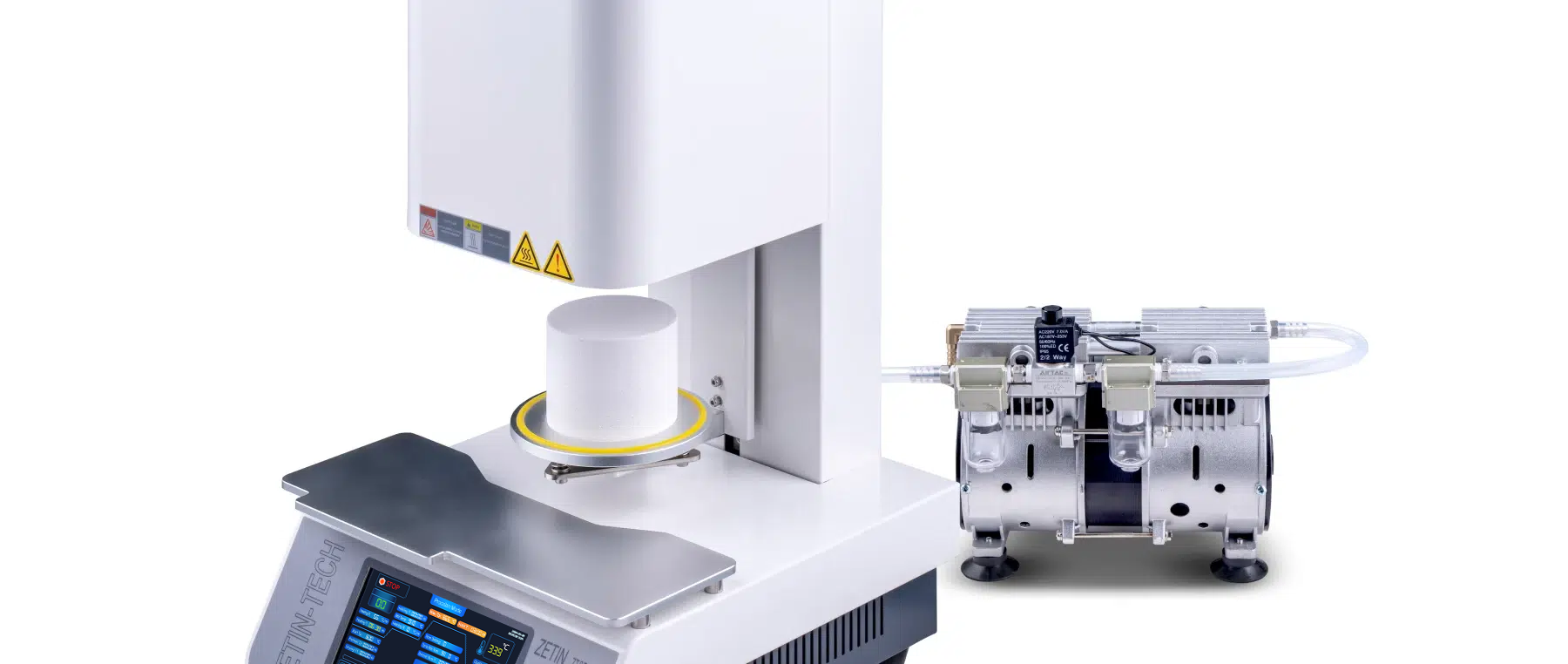

Oil-free vacuum pump
Long service life, high vacuum value, maintenance-free, low noise
Vacuum line filtration
Protect the relevant core components from damage, increase the service life of the equipment, and reduce maintenance costs
Technical parameters
Max.Temperature: 1300℃
Max.Vacuum: -98Kpa
Heating Rate: ≤140℃/min
Total Program No.: 100 programs (Can extend to 500 programs)
Power: 1600W
Voltage: 220V 50/60HZ
Chamber Size: ∅100mm*70mm
Size: 380*320*610 mm(L*W*H)
Net Weight: 21KG

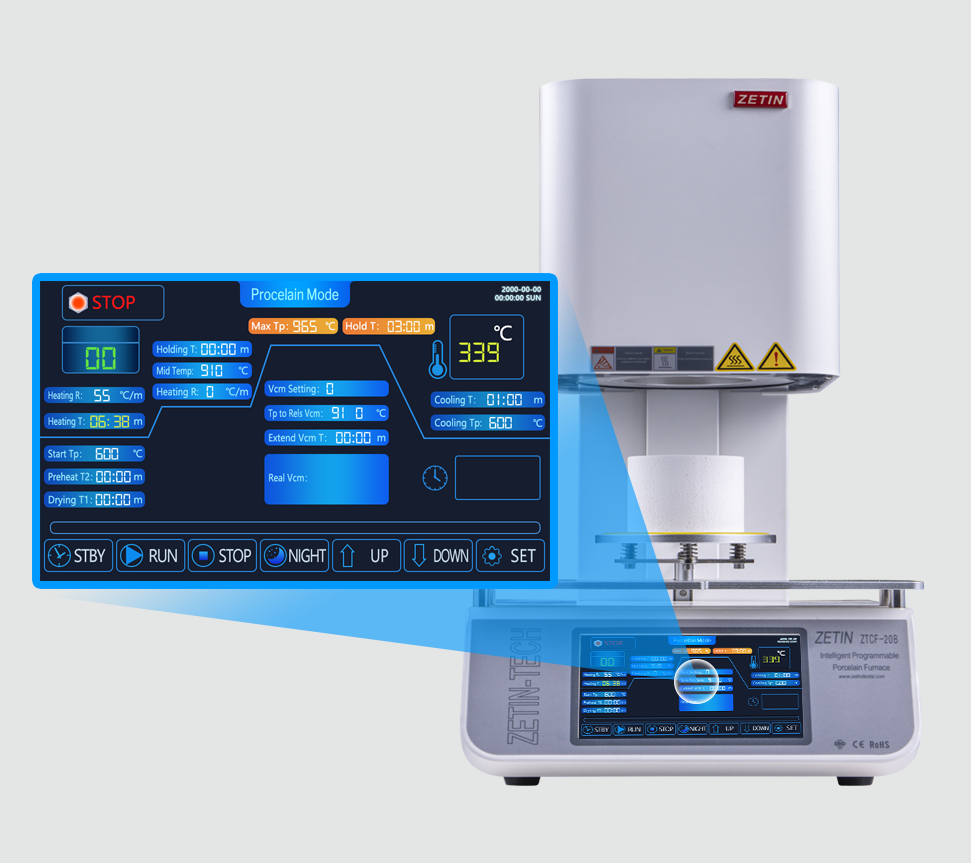

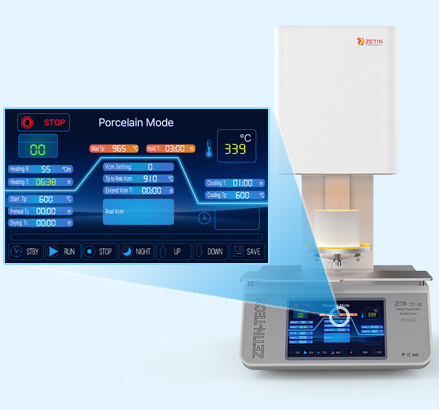

Large Touch Screen
Large touch screen, parameterized design interface, and panoramic display of all parameters.
After sales service and support
Warranty Policy
The warranty period for the entire machine is 1 year, and the warranty period will be recalculated after replacing the main components
Lifetime maintenance services are provided for the equipment, and only the cost of parts will be charged after the warranty period expires
Emergency response mechanism
The after-sales service hotline covers the whole country, including multi-channel support such as 400 hotline and WeChat customer service
Grading response standard:Respond to repair requests within 1 hour and provide remote solutions within 4 hours;Emergency faults require original factory parts to be delivered within 24 hours, while general faults require on-site disposal within 48 hours
Technical Support
Provide free operation training (including on-site/off-site modes) and process database updates
Remote diagnostic support: monitoring the status of core components such as temperature control modules and heating rods through IoT
Spare Part Service
Lifetime provision of original factory accessories (such as high-purity alumina furnace, silicon molybdenum rod, etc.)
Support non-standard customization services to match special sintering process requirements
